Brandhorst Museum

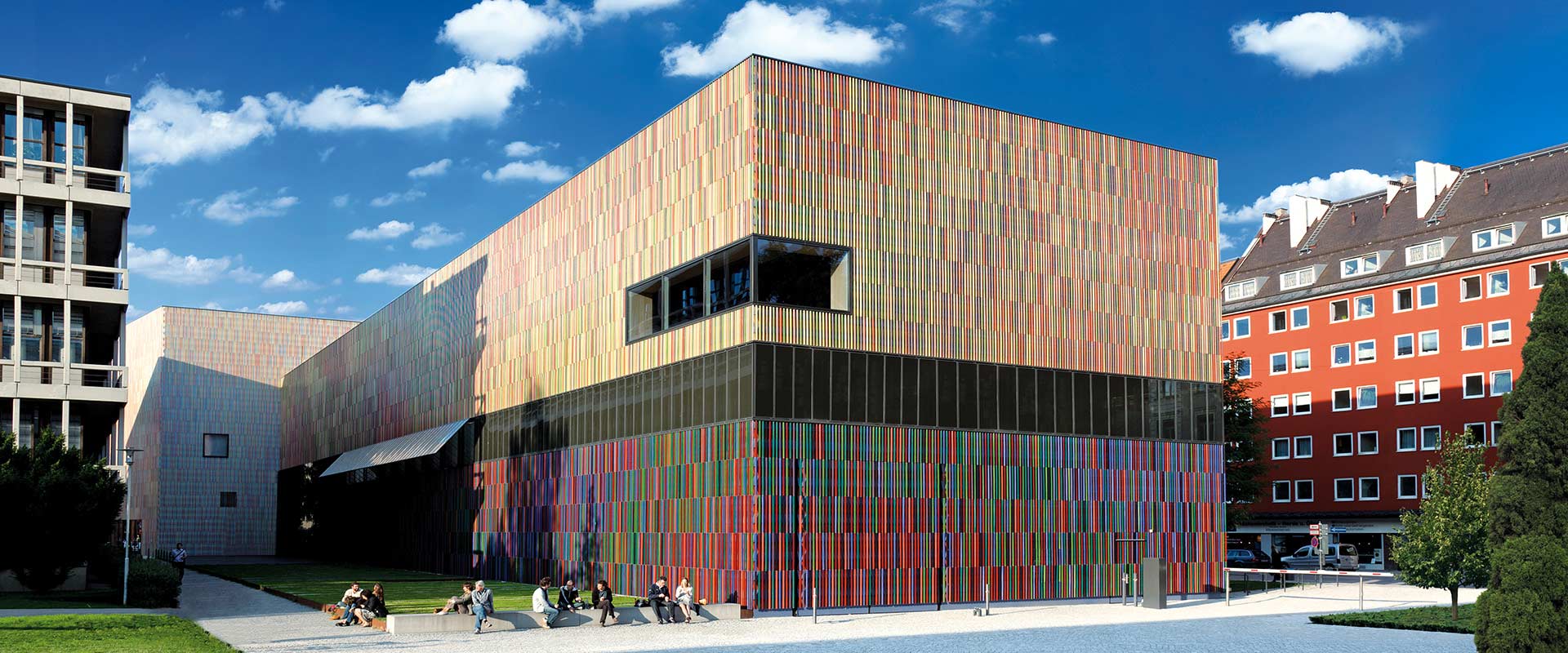

Brandhorst Museum, Munich


The Brandhorst Museum is situated between Munich's university quarter and the art district of Maxvorstadt, directly next to the Old and New Pinakotheks and the Pinakothek der Moderne. The museum, designed by the architecture firm Sauerbruch Hutton, houses Udo and Anette Brandhorst's collection of modern and contemporary art. For this purpose, an exhibition area of 3,200 square meters over three floors and a total usable area of 5,300 square meters with multiple mezzanine floors are available.

On the upper floor, the largest halls are impressive, featuring areas of up to 450 square meters and 9 meters in height. The ground floor consists mainly of smaller galleries connected by passages. Condair Dual hybrid humidifiers from Walter Meier ensure great air quality and comfortable humidity.




x

Hybrid humidifier

Condair DL



The Condair DL is the next generation of the Condair Dual2—the world's most successful system for adiabatic humidification. Its hygienic credentials have proven successful in practice and were verified and certified by independent organizations with public responsibility.

Hybrid humidification relies exclusively on the advantages of atomization and evaporation. This results in the sustainable resolution of key problems which can emerge when these technologies are used in isolation. The humidification system is therefore the first choice in terms of hygiene, energy efficiency and cost-effectiveness.



Further information on the Condair DL









Patented HygienePlus® method


Basically, air conditioners and humidification devices are not sterile areas. Even when humidifying water of drinking-water quality is used, this is never completely germ-free. Therefore, microbes can always settle and form hazardous biofilms in humidifiers and in damp areas of air conditioners. Suitable hygiene measures are therefore essential to hinder the growth and propagation of pathogens in adiabatic humidifiers. The germ diagram points out the rapid propagation of microorganisms when no appropriate steps are taken to contain them. The patented HygienePlus® method provides for healthy air and a lasting hygienic environment.

HygienePlus Cartridge







Energy-efficient low-pressure system


The low-pressure mode of operation translates to significant energy savings due to the lesser compression work. By combining the Condair DL humidifier and the reverse osmosis of the Condair AT2, even a pressure booster pump on the humidification system becomes superfluous!

Condair DL jet











Schematic layout


Low-pressure systems generally get by with a significantly shallower design depth than high-pressure humidifiers. Due to the arrangement of the evaporator ceramics so that they cover the full area, and as a result of the spray cone of the molecular diffuser nozzles, the entire overall depth of the Condair DL can be reduced to up to 600 mm. Thanks to its compact design, the humidification chamber can also be shortened, achieving a significant saving in materials.

Schematic layout




PDF / Brochure: Condair DL hybrid humidifier
