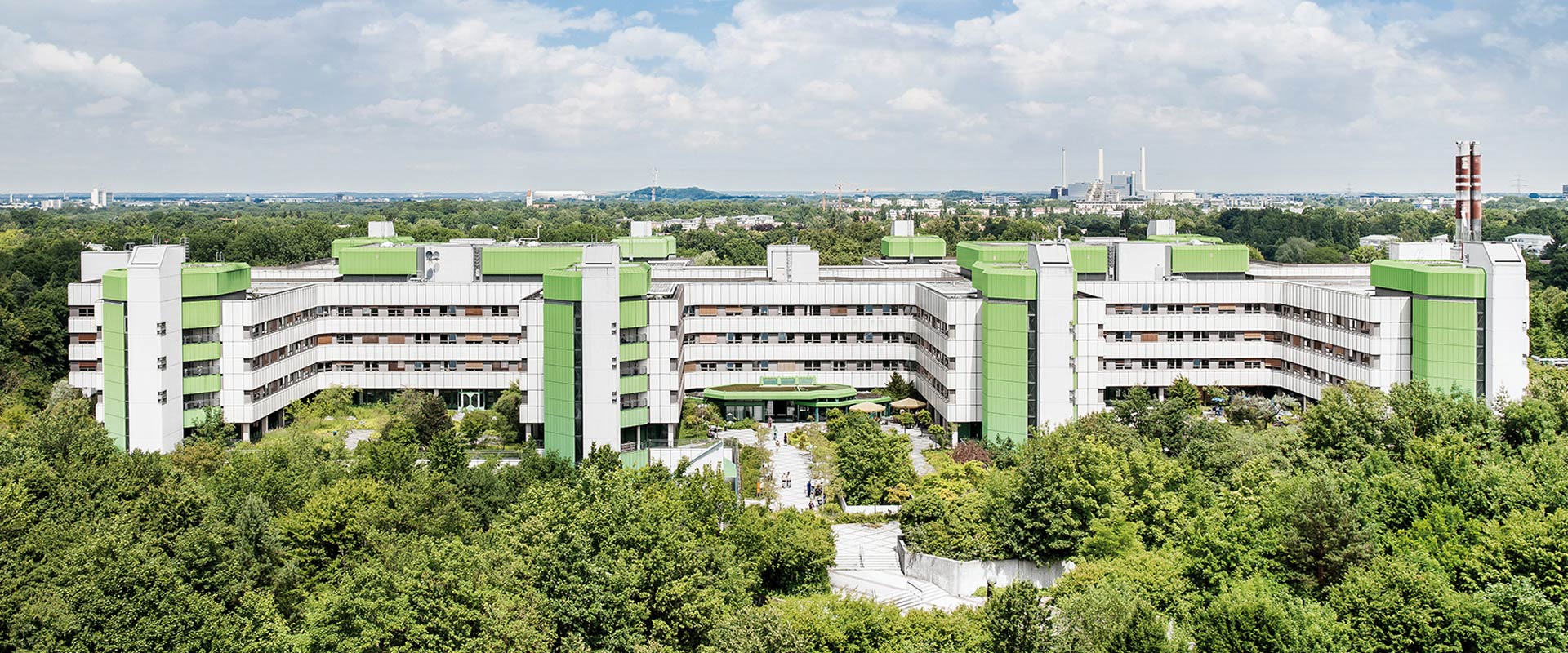

The Bogenhausen Clinic is a very good example of how hospital architecture has to constantly adapt to progress in medicine. Whilst in the late 19th century, hospitals were built in a pavilion style in order to prevent hospitalism (psychological side effects of hospitalization or committal), large and inter-connected building complexes are preferred for modern hospitals as result of specialization in medicine.
The Bogenhausen Clinic boasts, for example, 15 specialist departments, six intensive care stations, four outpatient clinics, and 15 operating theaters, and treats 35,400 inpatients and 3,100 semi-residential patients. In order to guarantee optimal treatment with the best possible security of care for each patient, the clinic maintains a complex quality management system, which has been awarded the KTQ certificate (Cooperation for Transparency and Quality in Health Care), among other things. The Condair ESCO pressurized steam distribution system guarantees hygienic humidification of the highest standard.
Condair ESCO humidification systems for existing steam set the standards. The key element is the TÜV (German Technical Inspection Association) certified steam connection unit. The functional elements are fully integrated into it, in a design that guarantees fault-free steam connection.
Costly seals and pipework are superfluous. Installation is calculable, quick and cost-effective. The modular steam distribution system with its patented steam nozzles needs no jacket heating. This effectively prevents unnecessary energy consumption even during downtimes. All seal points are included in the factory delivery. This simplifies the entire equipment installation significantly without running the risk of leaking pipe connections.
Further information on the Condair ESCO
Patented rotary disk valve
The valve operating mechanism is designed as a rotary drive, supplying high accuracy and reliable operation. The low actuating forces needed by the rotary slide valve and the direct power transmission allow for a compact and space-saving design. Conventional electrical and pneumatic humidity controllers can be connected.
The ceramic valves close with absolute tightness. When the system is switched off they prevent steam from entering the ventilation system and they do this without any additional shut-off device. Undesirable condensate buildup is thereby safely prevented without additional measures.
Condensate-free steam with
patented center-flow nozzles
The patented steam nozzles remove steam only from the main flow of the distribution pipes where the steam is hot and condensate-free. In this manner they ensure that the air hoses behind the distribution system remain dry. Made of solid stainless steel, they work reliably, are long-lasting and resistant to aging, and do not leak.
Homogeneous steam distribution
and shortest humidification distances
The patented steam nozzles remove steam only from the main flow of the distribution pipes where the steam is hot and condensate-free. Short humidification distances are decisive factors for reliable and hygienic steam humidification. In air conditioning systems there must be no vapor in air pipe installations. Damp surfaces, water accumulation and hygienic risks would be the consequence.
Condair ESCO DL40
The DL40 can be tailored flexibly to the air duct system using one, two or three horizontal steam distributors. This means considerable freedom in steam output and constructive design of the humidification chamber.
Condair ESCO DR73
